Admin Quickstart

Check prerequisites

Start with these requirements:

• A GitLab project with merge request pipelines enabled.
• Runner access to the selected provider endpoint.
• A PatchPatrol image such as registry.patchpatrol.ai/patchpatrol:latest.
• Admin access to the CI variables and pipeline configuration for the project.

Authentication is required before pulling images.

Success check

• You know which GitLab project will host the first review flow.
• You can edit CI variables for that project.
• You have a reachable provider endpoint and a model choice for the first run.

Confirm access and roles

The admin owns invitations, repository setup, CI configuration, and the first review handoff. The developer needs access to open merge requests, view pipeline results, and read the generated review artifacts.

Use Access and roles for invitations, role handoffs, and the minimum token and membership requirements.

Success check

• You know which actions stay with the admin and which actions move to the developer.
• Developers know they should wait for the setup handoff before expecting a runnable review flow.

Connect the GitLab project

Set PatchPatrol up on the GitLab project that will host the first review workflow:

• Add the pinned PatchPatrol GitLab component include to merge request pipelines when the component is available on your GitLab instance.
• Use the direct image job from Installation and upgrades only when the component is not published for your instance yet or a custom image workflow is required.
• Make sure the target branch is fetchable from the runner.
• Keep the workflow centered on merge request review rather than local-only or operator-only variants.

Success check

• A merge request pipeline exists for the project.
• The review job is attached to that path instead of a separate dedicated side workflow.

For installation and upgrade steps, use Installation and upgrades.

Configure the review path

For the first setup, use:

• include:component pinned to a published PatchPatrol component SemVer tag
• component image left at the default registry.patchpatrol.ai/patchpatrol:latest
• AI_REVIEW_OUTPUT_DIR=.ai-review
• AI_REVIEW_FEEDBACK_MODE=artifact-only
• AI_REVIEW_MODEL=<supported model>
• AI_REVIEW_PROVIDER=ollama with OLLAMA_HOST=<reachable endpoint> or AI_REVIEW_PROVIDER=openai with OPENAI_BASE_URL=<reachable endpoint> and OPENAI_API_KEY when required
• Optional: AI_REVIEW_PROVIDER_ALLOWLIST_BASE_URLS=<exact normalized provider base URL(s)> when you want to restrict provider calls to known endpoints

Keep the first rollout in artifact-only mode so the team can verify the generated outputs before enabling optional merge request feedback.

Keep stable review policy in .ai-review.yml when it should travel with the repository, for example model/provider defaults, review context mode, fail policy, and review.rules. Keep provider endpoint values, provider keys, registry credentials, allowlist controls, and optional GitLab feedback tokens in masked/protected GitLab CI/CD variables. Do not check secret values into .gitlab-ci.yml or .ai-review.yml.

Configure the Self-Hosted License

Real-provider review work requires a valid Self-Hosted License. Configure exactly one runtime source:

• Store the Signed License payload in a masked/protected CI variable named PATCHPATROL_LICENSE.
• Mount the Signed License as a secret file and set PATCHPATROL_LICENSE_FILE=/run/secrets/patchpatrol-license.jwt to the mounted secret file path.

Do not paste either value into component inputs, .gitlab-ci.yml, or .ai-review.yml. The component remains orchestration-only, and repo-local policy is safe to version with source code only because license material and license paths stay outside it.

Validate the same runtime wiring before the first review:

ai-review license inspect --json

The command exits 0 for a valid license and 12 for a missing or untrusted license. It prints non-sensitive status, reason codes, and trusted entitlement claims; it does not print the raw Signed License or call a provider.

Optional provider allowlist

If you set an allowlist, PatchPatrol enforces an exact normalized match before any non-mock provider call:

AI_REVIEW_PROVIDER=openai
OPENAI_BASE_URL="https://llm-gateway.internal/v1"
AI_REVIEW_PROVIDER_ALLOWLIST_BASE_URLS="https://llm-gateway.internal/v1"

AI_REVIEW_PROVIDER=ollama
OLLAMA_HOST="http://ollama.internal:11434"
AI_REVIEW_PROVIDER_ALLOWLIST_BASE_URLS="http://ollama.internal:11434/"

Mock runs skip remote provider calls, so optional provider allowlists only affect non-mock providers.

Use Configuration Reference for the exact variable contract and Troubleshooting when a trust-gate failure blocks the run.

Example: first review job

Use the component include for the first rollout when the component is available on your GitLab instance:

include:
  - component: $CI_SERVER_FQDN/patchpatrol/components/gitlab-review@1.0.0
    inputs:
      feedback-mode: artifact-only
      readiness-mode: 'off'
      output-dir: .ai-review

Self-managed GitLab instances may need a mirrored or local PatchPatrol component project and local Catalog setup before the include can resolve. Turn on GitLab readiness only when MR feedback is enabled and the job has the required token/context.

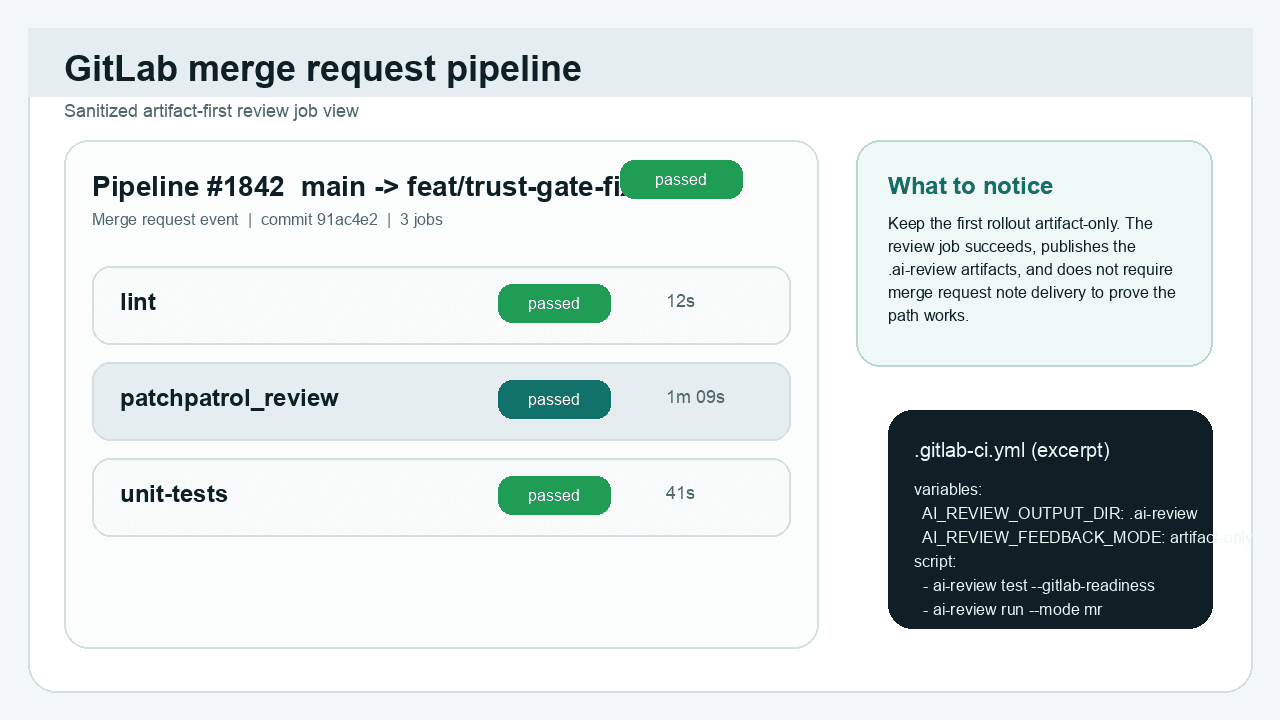

What to notice: the PatchPatrol review job is the proof point. For the first run, it only needs to finish, publish .ai-review artifacts, and keep MR note delivery optional.

Success check

• The review job uses the default latest PatchPatrol image, or an explicit patch tag when needed.
• Artifact output is enabled under .ai-review.
• The provider endpoint, model, feedback mode, and any optional allowlist are configured for the first run.
• Self-Hosted License wiring is valid: ai-review license inspect --json exits 0 before the first real-provider run.

Run readiness checks

Before the first artifact-only review run, validate the provider path in the same environment the job will use:

• Run ai-review test --chat --readiness-json as a non-mutating provider/config preflight.
• Provide PATCHPATROL_LICENSE or PATCHPATROL_LICENSE_FILE for real-provider chat probes; license failures exit 12 before provider calls.
• Add --semantic-readiness only when the first rollout enables diff+semantic.
• Run ai-review test --gitlab-readiness --readiness-json only before enabling MR feedback with the required GitLab token/context.
• Confirm the job can reach the provider endpoint it needs.
• Read the readiness.metadata category before changing settings; for example, fix credentials for authentication and model selection for model_unavailable.
• Resolve missing access, provider, or merge request context issues before you ask developers to rely on the flow.

Success check

• The readiness check exits with status 0.
• You can explain the next step to a developer.

Open the first review flow

Open or update a merge request so the configured review job runs. After the first successful job, open the HTML or Markdown Run Report and confirm that the JSON report is present:

• .ai-review/ai-review.md
• .ai-review/ai-review.json
• .ai-review/ai-review.html

Once the flow is running, hand the team forward to the Developer quickstart and First review output.

Success check

• The merge request pipeline runs the PatchPatrol review job.
• The review job produces ai-review.html, ai-review.md, and ai-review.json.
• Developers can move to the next guide without needing admin-only setup details.
